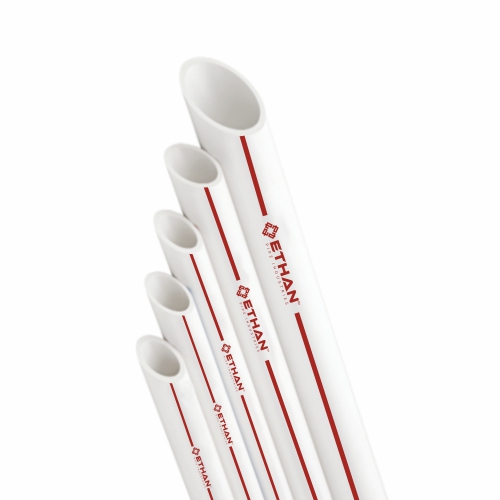

uPVC Pipes
SCH - 40
| Size | : 1/2 inch (15 mm) |
| Length | : 3 Meter or 6 Meter |
| Class | : Schedule 40 |
| Colour | : White |
| Outer Diameter | : 21.24 - 21.44 mm |
| Wall Thickness | : 2.77 - 3.28 mm |
| Pressure Rating (23℃) | : 42.19 kg/cm2 |
| Size | : 3/4 inch (20 mm) |
| Length | : 3 Meter or 6 Meter |
| Class | : Schedule 40 |
| Colour | : White |
| Outer Diameter | : 26.57 - 26.77 mm |
| Wall Thickness | : 2.87 - 3.38 mm |
| Pressure Rating (23℃) | : 33.75 kg/cm2 |
| Size | : 1 inch (25 mm) |
| Length | : 3 Meter or 6 Meter |
| Class | : Schedule 40 |
| Colour | : White |
| Outer Diameter | : 33.27 - 33.53 mm |
| Wall Thickness | : 3.38 - 3.89 mm |
| Pressure Rating (23℃) | : 31.64 kg/cm2 |
| Size | : 11⁄4 inch (32mm) |
| Length | : 3 Meter or 6 Meter |
| Class | : Schedule 40 |
| Colour | : White |
| Outer Diameter | : 42.03 - 42.29 mm |
| Wall Thickness | : 3.56 - 4.07 mm |
| Pressure Rating (23℃) | : 26.01 kg/cm2 |
| Size | : 11⁄2 inch (40 mm) |
| Length | : 3 Meter or 6 Meter |
| Class | : Schedule 40 |
| Colour | : White |
| Outer Diameter | : 48.11 - 48.41 mm |
| Wall Thickness | : 3.68 - 4.19 mm |
| Pressure Rating (23℃) | : 23.20 kg/cm2 |
| Size | : 2 inch (50 mm) |
| Length | : 3 Meter or 6 Meter |
| Class | : Schedule 40 |
| Colour | : White |
| Outer Diameter | : 60.17 - 60.47 mm |
| Wall Thickness | : 3.91 - 4.42 mm |
| Pressure Rating (23℃) | : 19.69 kg/cm2 |
uPVC Pipes
SCH - 80
| Size | : 1/2 inch (15 mm) |
| Length | : 3 Meter or 6 Meter |
| Class | : Schedule 80 |
| Colour | : White |
| Outer Diameter | : 21.24 - 21.44 mm |
| Wall Thickness | : 3.73 - 4.24 mm |
| Pressure Rating (23℃) | : 58.6 kg/cm2 |
| Size | : 3/4 inch (20 mm) |
| Length | : 3 Meter or 6 Meter |
| Class | : Schedule 80 |
| Colour | : White |
| Outer Diameter | : 26.57 - 26.77 mm |
| Wall Thickness | : 3.91 - 4.42 mm |
| Pressure Rating (23℃) | : 47.6 kg/cm2 |
| Size | : 1 inch (25 mm) |
| Length | : 3 Meter or 6 Meter |
| Class | : Schedule 80 |
| Colour | : White |
| Outer Diameter | : 33.27 - 33.53 mm |
| Wall Thickness | : 4.55 - 5.08 mm |
| Pressure Rating (23℃) | : 43.4 kg/cm2 |
| Size | : 11⁄4 inch (32mm) |
| Length | : 3 Meter or 6 Meter |
| Class | : Schedule 80 |
| Colour | : White |
| Outer Diameter | : 42.03 - 42.29 mm |
| Wall Thickness | : 4.85 - 5.43 mm |
| Pressure Rating (23℃) | : 35.9 kg/cm2 |
| Size | : 11⁄2 inch (40 mm) |
| Length | : 3 Meter or 6 Meter |
| Class | : Schedule 80 |
| Colour | : White |
| Outer Diameter | : 48.11 - 48.41 mm |
| Wall Thickness | : 5.08 - 5.69 mm |
| Pressure Rating (23℃) | : 32.4 kg/cm2 |
| Size | : 2 inch (50 mm) |
| Length | : 3 Meter or 6 Meter |
| Class | : Schedule 80 |
| Colour | : White |
| Outer Diameter | : 60.17 - 60.47 mm |
| Wall Thickness | : 5.54 - 6.20 mm |
| Pressure Rating (23℃) | : 27.6 kg/cm2 |
